Short on floor space? The S-10 delivers 1.08 m³/min at 8 bar from a compact 7.5 kW unit, with an 880 × 660 mm footprint.
Item NO.:
S-10Product Origin:
ChinaShipping Port:
XiamenLead Time:
7-15 days

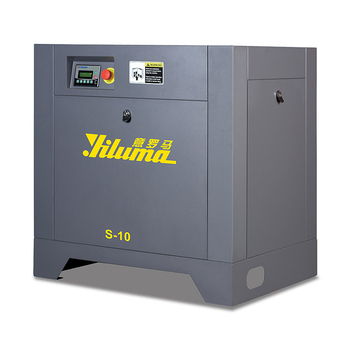

Yiluma S-10 7.5 kW / 10 HP Compact Screw Air Compressor
Short on floor space? The S-10 delivers 1.08 m³/min at 8 bar from a compact 7.5 kW unit, with an 880 × 660 mm footprint.
1.Large air volume dissipation structure
(1)Quick dissipation
Large Air volume reverse sucting axial fan, easy for maintenance.
(2)Stable structure
Hexagonal air outlet on the left size,beautiful appearance,better dissipation for the motor.
(3)Big discharge
Dischage air smoothly by specilize design,improve air compressor running efficiency.
(4)Large air inlet
Double tuyeres and top fan,supplement and complement each other,simple and high efficiency dissipation desgin.
2.Shock pad imported from Switzerland is highly effective in damping,flexibility,oil and temperature resistance.
3.Power frequency coupling direct connection structure,no belt aging,more efficient and durable.
4.Self developed protection level IP23 IP54 motor,more safety,higher efficiency,more energy saving.
|
Model |
S-10 |
Discharge Pressure(Mpa) |
0.8 |
|
Air Delivery(m³/min) |
1.08 | Power(kW) | 7.5 |
|
Lubricant(L) |
3 |
Drive Method |
Power Frequency |
|
Cooling |
Air |
Discharge Temperature(℃) |
≤Ambient temperature±15℃ |
|
Electricity(V/Hz) |
380V/50Hz |
Weight(kg) | 185 |
|
Dimension(mm) |
880*660*900 |
Air Outlet Pipe Diameter(inch/mm) |
G3/4'' |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
