Permanent Magnet VSD Screw Compressor

/High Efficiency Permanent Magnetic Servo Screw Air Compressor

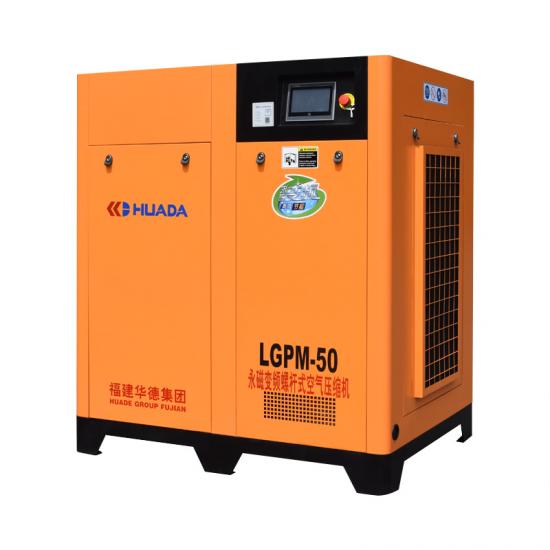

High Efficiency Permanent Magnetic Servo Screw Air Compressor

When purchasing compressor,costs in the traditional sense (purchasing cost+ maintenance costs),Only 25% of to the total cost,while energy consumption cost is 75%.HUADA permanent magnetic frequency conversion screw air compressor save 35-45% energy more than common (fixed frequency) air compressor.

  • Item NO.:

    LGPM-50
  • Product Origin:

    China
  • Product weight:

    800kg
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
  • Product Details

High Efficiency Permanent Magnetic Servo Screw Air Compressor


When purchasing compressor,costs in the traditional sense (purchasing cost+ maintenance costs),Only 25% of to the total cost,while energy consumption cost is 75%.HUADA permanent magnetic frequency conversion screw air compressor save 35-45% energy more than common (fixed frequency) air compressor.



1.Direct drive separated structure,totally enclosed IE4 permanent magnetic motor

Use protection level IP54 permanent magnetic motor,easy maintenance.Ultimate temperature for magnetic loss is above 180℃,higher efficient than open-type protection level IP23.Protection level IP23 magnetic motor Ultimate temperature for magnetic loss at 150℃.Air compressor in using strong magnets easily adsorbed dust and late iron leads to lower  efficiency,if adsorption chemical fiber flocking,will cause a fire.Huade IP54permanent magnetic motor more safety,more efficient,more energy saving.

2.Special sensorless open-loop control technology inverter

Directly use open-loop specialized variable-frequency speed control system.Via gradually increased frequency inverter to start,leave out encoder,easy maintain.

3.Oil filter

Use rotation type oil filter,totally filtering impurity inside lubricating oil,internally installed temperature control valve,adapt the temperature  in different regions, ensure the quality of lubricating oil and oil pressure, easily change,don’t worry about oil leakage.

4.Intelligent touch screen operation

Use computer controller,Humanized operation interface,not  only adjust and monitoring compressor comprehensively,but high end network IT,make  remote network control  become  realistic.



Model
LGPM-50
Discharge Pressure(Mpa)
0.6-1.0
Air Delivery(m³/min)
7.6-5.8 Power(kW)
37
Lubricant(L)
22 Driving way
Direct drive
Cooling
Air Cooling
Discharge Temperature(℃)
Ambient temperature±15℃
Noise Level(dB(A))
68±3
Drive Method
Frequency conversion starting
Electricity(V/Hz)
380V/50Hz
Dimension(mm)
1400*1000*1580
Weight(kg)
800 Air Outlet Pipe Diameter(inch/mm)
G1-1/2''



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
