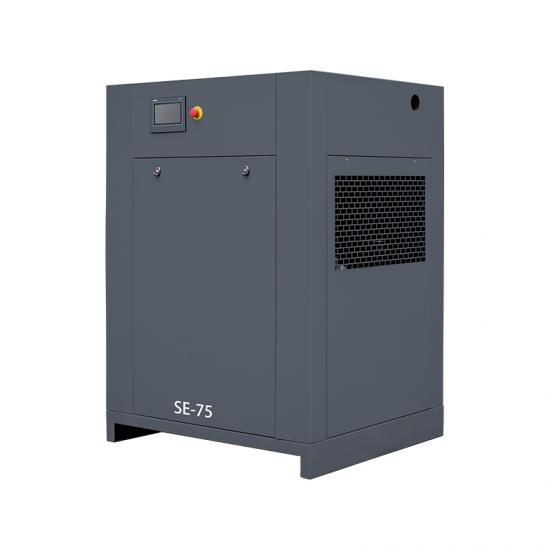

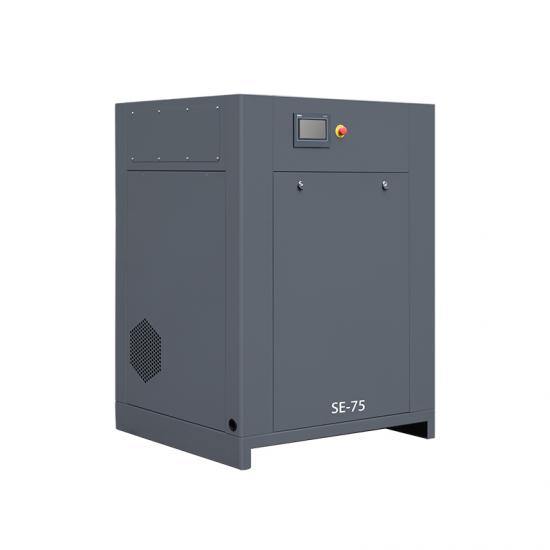

SE-75 Permanent Magnet Variable Frequency Screw Air Compressor

The SE-75 features a power output of 55 kW and a large displacement of 9.1 m³/min; equipped with an IE4 permanent magnet motor and a three-

stage oil-gas separation system, it provides continuous and stable high-pressure air for heavy-duty manufacturing, large-scale auto parts production, and general industrial applications.

1. 55 kW high power output and a large displacement of 9.1 m³/min: featuring 75 HP power reserve and maintaining a continuous output of 9.1 m³/min at 0.8 MPa, enabling seamless operation for multi-station gas requirements in large workshops, heavy machinery applications, and similar scenarios.

2. IE4 Permanent Magnet Motor + Variable Frequency Soft Starter: The IE4 high-efficiency permanent magnet IP23 motor, when paired with a variable frequency drive (VFD) starter, features a low starting current, minimal grid impact, fast load response, and consistently maintains high operational efficiency.

3. High-capacity heat dissipation ensures no reduction in output under heavy loads: the large-diameter suction-type fan works synergistically with the dual exhaust ports at the bottom for effective heat dissipation; equipped with a 26L lubricating oil capacity, it maintains stable and controllable exhaust temperatures even during continuous 24-hour operation.

4. G1 1/2 large-diameter outlet provides lower pipeline pressure loss: The flanged large-diameter outlet interface, combined with a robust chassis measuring 1200 × 1100 × 1700 mm, reduces pipeline pressure drop and enhances the end-user gas delivery experience.

5. Five-layer electrical protection ensures more reliable operation: with comprehensive protection against phase loss, overload, undervoltage, overvoltage, and phase imbalance, the system maintains stable operation even under grid fluctuations.

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
