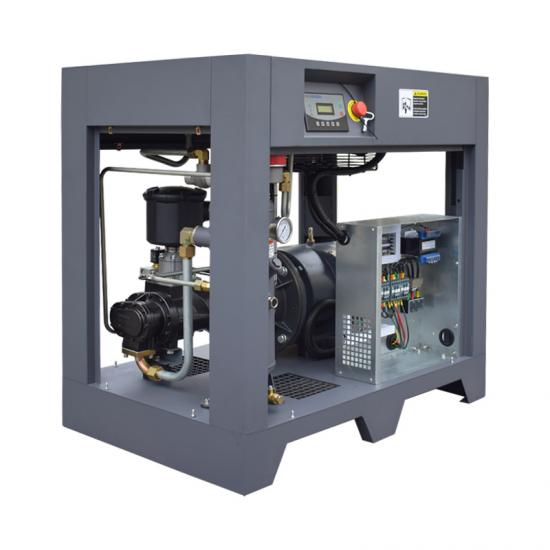

Yiluma Single Stage Energy Saving Screw Air Compressor

Yiluma single stage energy saving screw air compressor adopts a heat dissipation structure with high air volume.The machine is easy to install,easy to operate,and has a long service life.

  • Item NO.:

    S-20
  • Product Origin:

    China
  • Product weight:

    290
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
  • Product Details

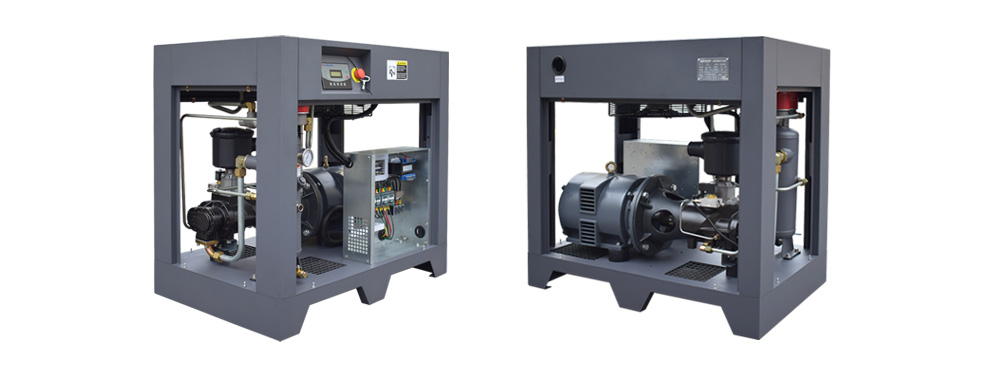

Yiluma Single Stage Energy Saving Screw Air Compressor


Yiluma single stage energy saving screw air compressor adopts a heat dissipation structure with high air volume.The machine is easy to install,easy to operate,and has a long service life.



1.Large air volume dissipation structure

(1)Quick dissipation

Large Air volume reverse sucting axial fan, easy for maintenance.

(2)Stable structure

Hexagonal air outlet on the left size,beautiful appearance,better dissipation for the motor.

(3)Big discharge

Dischage air smoothly by specilize design,improve air compressor running efficiency.

(4)Large air inlet

Double tuyeres and top fan,supplement and complement each other,simple and high efficiency dissipation desgin.

2.Shock pad imported from Switzerland is highly effective in damping,flexibility,oil and temperature resistance.
3.Power frequency coupling direct connection structure,no belt aging,more efficient and durable.
4.Self developed protection level IP23 IP54 motor,more safety,higher efficiency,more energy saving.




Model
S-20 Discharge Pressure(Mpa)
0.8
Air Delivery(m³/min)
2.3 Power(kW)
15
Lubricant(L)
5 Drive Method
Power Frequency
Cooling
Air
Discharge Temperature(℃)
≤Ambient temperature±15℃
Electricity(V/Hz)
380V/50Hz
Weight(kg)
290
Dimension(mm)
1100*730*1050
Air Outlet Pipe Diameter(inch/mm)
G3/4''



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
