Direct Driven Screw Compressor

/Yiluma S-30 22 kW / 30 HP Fixed-Speed Screw Air Compressor

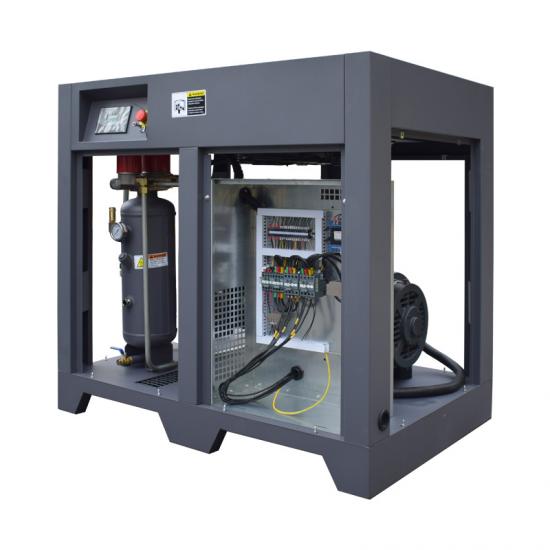

Yiluma S-30 22 kW / 30 HP Fixed-Speed Screw Air Compressor

Give your production area a straightforward air supply with the S-30. This 22 kW direct-drive compressor delivers 3.3 m³/min at 8 bar in an air-cooled cabinet.

  • Item NO.:

    S-30
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
New Products
  • Product Details

Yiluma S-30 22 kW / 30 HP Fixed-Speed Screw Air Compressor


Give your production area a straightforward air supply with the S-30. This 22 kW direct-drive compressor delivers 3.3 m³/min at 8 bar in an air-cooled cabinet.



1、Useful production output. Supply 3.3 m³/min at 8 bar for your compressed-air equipment. 2、Simpler drive upkeep. A coupling-driven system eliminates belt tensioning and belt changes. 3、Air cooling built in. The axial fan removes heat without a cooling-water circuit. 4、Smoother running. Flexible damping pads help reduce vibration transfer from the machine. 5、Clear installation dimensions. A 1,200 × 900 mm footprint helps you plan the equipment space.


Model
S-30
Discharge Pressure(Mpa)
0.8
Air Delivery(m³/min)
3.3 Power(kW)
22
Lubricant(L)
5 Drive Method
Power Frequency
Cooling
Air
Discharge Temperature(℃)
≤Ambient temperature±15℃
Electricity(V/Hz)
380V/50Hz
Weight(kg)
315
Dimension(mm)
1200*900*1220
Air Outlet Pipe Diameter(inch/mm)
G1''



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
