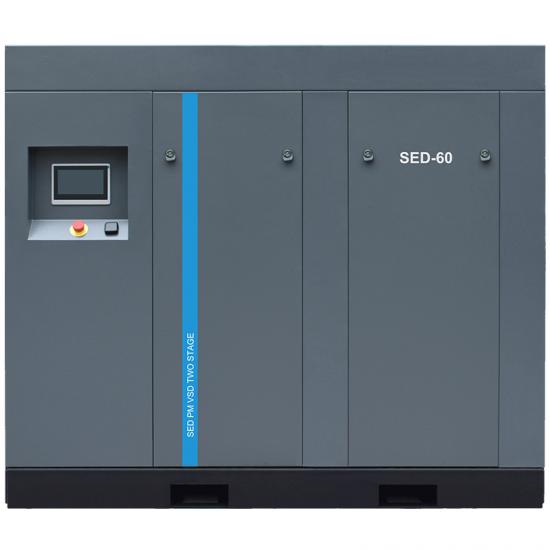

The SED-60 combines a 45 kW IE5 permanent-magnet motor with dual-stage screw compression to deliver 9.8 m³/min at 0.7 MPa, offering up to 35% energy savings for small and medium workshops.
Item NO.:
SED-60Product Origin:
ChinaShipping Port:
XiamenLead Time:
7-15 days
The latest 45 kW SED series permanent magnet two-stage variable-frequency screw air compressor with innovative design
The SED-60 combines a 45 kW IE5 permanent-magnet motor with dual-stage screw compression to deliver 9.8 m³/min at 0.7 MPa, offering up to 35% energy savings for small and medium workshops.
1. Dual-stage compression plus an IE5 permanent-magnet motor achieves up to 35% energy savings, exceeding Class 1 energy-efficiency standards.
2. Dual VFD control of the main and fan motors matches air delivery to demand in real time, reducing unloaded losses.
3. High-precision Ultra-Web filter media delivers 99.99% filtration efficiency, protecting the airend in dusty workshops.
4. Patented bionic fan and optimized oil/air cooling system ensure stable full-load operation up to 45°C.
5. Built-in airlinkiot remote monitoring lets you view pressure, temperature, and running status anytime.
|
model |
SED-60 |
Discharge Pressure(Mpa) |
0.7 |
|
Air Delivery(m³/min) |
9.8 |
Power(kW) |
45 |
|
Lubricant(L) |
40 |
Drive Method |
Variable frequency starting |
|
Cooling |
Air |
Discharge Temperature(℃) |
≤Ambient temperature±15℃ |
|
Electricity(V/Hz) |
380V/50Hz |
Weight(kg) |
1380 |
|
Dimension(mm) |
1800*1250*1600 |
Air Outlet Pipe Diameter(inch/mm) |
G2" |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
