hoosing a compact screw air compressor can help preserve valuable production space. A practical layout also gives the machine enough room for cooling, maintenance and everyday access. Before ordering, assess the complete installation area, including the space around and above the cabinet. This helps turn a small equipment footprint into a workable installation.

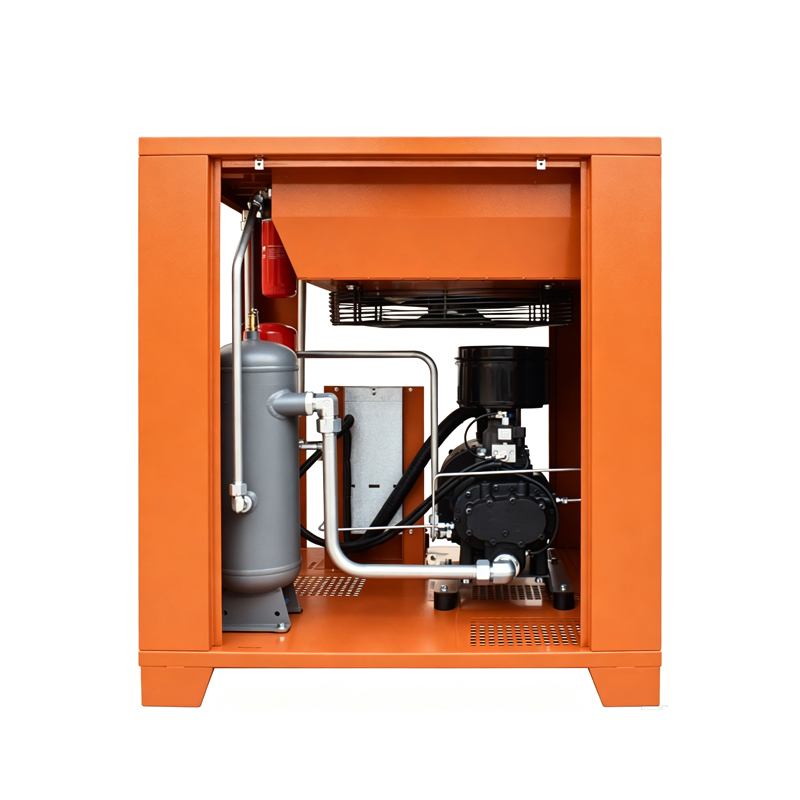

Start with a scaled floor plan. The HUADA SG-50 a 37 kW single-stage permanent magnet VSD screw compressor, has published cabinet dimensions of 1000 × 1100 × 1200 mm (L × W × H), giving a cabinet footprint of 1.10 m². Add the model-specific service and cooling clearances shown in the installation drawing. The complete installation will occupy more space than the cabinet footprint.

Plan compressor room ventilation around the cooling-air path. Provide suitable incoming air and a route for hot exhaust to leave without returning to the cooling inlet. Check the hottest expected site conditions against the selected machine’s allowable ambient range. Where ducting is proposed, confirm cooling airflow and allowable duct resistance with the manufacturer before sizing fans or vents.

For air compressor installation, map service access as carefully as floor area. Check that panels can open fully, consumables can be replaced and the cooler can be cleaned. Keep access to the controller and electrical enclosure clear. Allow room to move tools and replacement components, using the selected model’s instructions to establish the required clearances.

Check the delivery route and system connections before finalizing the layout. Measure doorways, turns and overhead restrictions, and confirm the packed dimensions, handling method and floor loading. Mark the air outlet, power connection and drainage route, plus space for any required receiver and air-treatment equipment. Agree the supply voltage, phase and frequency, then confirm the final installation drawing for the supplied configuration.

Complete the space plan with an air-demand check. Match the selected model’s delivery at your required pressure to normal and peak demand, and confirm its suitability for your operating pattern. Planning a new compressor area or replacing an existing unit? Send HUADA a layout sketch, site photos, required pressure, airflow and power supply to request a model recommendation and installation requirements.
