Need reliable compressed air without giving up valuable floor space? The compact M2.0-10 pairs a 7.5 kW permanent magnet motor with variable speed control and delivers a listed 1.4-1.1 m³/min across 0.7-1.0 MPa. With operating noise listed at 60 dB(A), it is a practical choice for smaller production areas.
Item NO.:
M2.0-10Product Origin:
ChinaShipping Port:
XiamenLead Time:

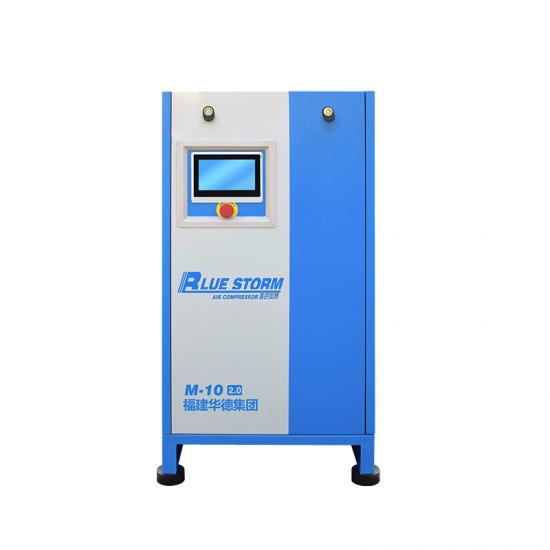

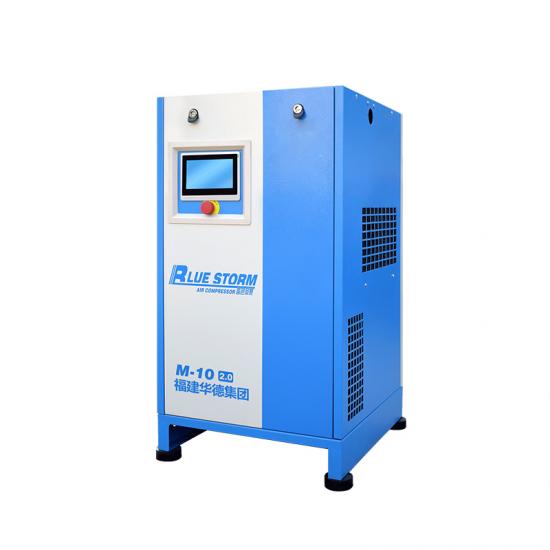

7-15 daysBlue Storm M2.0-10 7.5 kW Permanent Magnet Variable Speed Screw Air Compressor
Need reliable compressed air without giving up valuable floor space? The compact M2.0-10 pairs a 7.5 kW permanent magnet motor with variable speed control and delivers a listed 1.4-1.1 m³/min across 0.7-1.0 MPa. With operating noise listed at 60 dB(A), it is a practical choice for smaller production areas.
1. Save valuable floor space. The compact cabinet is easy to fit into a smaller compressor room.
2. Keep the workplace quieter. A listed noise level of 60 dB(A) helps reduce disturbance around the unit.
3. Match air output to actual demand. Variable speed control adjusts the motor as your air use changes.
4. Use energy more efficiently. The high-efficiency IPM motor is rated up to 96% and reaches IE4 efficiency class.
5. Check status at a glance. The intelligent controller displays operating data and supports fault protection.
|
Model |
M2.0-10 |
Discharge Pressure(Mpa) |
0.7 |
|
Air Delivery(m³/min) |
1.1 | Power(kW) | 7.5 |
|
Lubricant(L) |
5 |
Driving Way |
Direct-Drive |
|
Cooling |
Air-cooled |
Discharge Temperature(℃) |
Ambient temp +15 |
|
Electricity(V/Hz) |
380V/50Hz |
Weight(kg) |
180 |
|
Dimension(mm) |
680*610*1255 |
Air Outlet Pipe Diameter(inch/mm) |
3/4 |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
