The HS4808 features a dual-cylinder 90 mm × 2 cast iron pump head paired with a 4 kW all-copper motor, offering an exhaust capacity of 0.48 m³/min and a large 120 L air reservoir, providing stable and cost-effective compressed air for small to medium-sized auto repair shops, metalworking facilities, and assembly lines.
Item NO.:
HS4808Product Origin:
ChinaProduct weight:
158kgShipping Port:
XiamenLead Time:
7-15 days

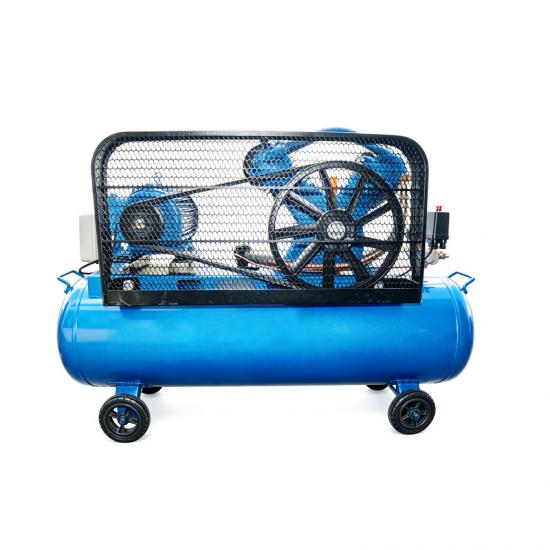

HS4808 Dual-Cylinder Belt-Driven Air-Blowing Mobile Piston Compressor with Air Cooling
The HS4808 features a dual-cylinder 90 mm × 2 cast iron pump head paired with a 4 kW all-copper motor, offering an exhaust capacity of 0.48 m³/min and a large 120 L air reservoir, providing stable and cost-effective compressed air for small to medium-sized auto repair shops, metalworking facilities, and assembly lines.
1. 4kW double-cylinder cast iron pump head with a continuous air supply capacity of 0.48 m³/min: featuring a symmetrical double-cylinder arrangement and high-efficiency belt drive; equipped with a 120L air storage tank that provides ample air supply, reduces frequent start-stop cycles, and ensures sufficient air supply for multiple tools such as spray guns, pneumatic wrenches, and grinding equipment operating simultaneously.
2. The large-capacity 120L air reservoir ensures more stable air pressure and reduced pulsation: compared with the 40L model, the horizontal air reservoir's capacity is increased threefold, resulting in minimal pressure fluctuations, consistent output from pneumatic tools, and improved surface quality of finished products.
3. Air-cooled heat dissipation combined with a larger flywheel ensures no power reduction even in 45°C environments: the cast-aluminum flywheel blades feature enhanced air cooling, while the cylinder head and inter-stage cooling efficiency are improved, enabling stable operation even in high-temperature summer workshops.
4. Combines multiple protection features: pressure gauge, safety valve, and unloading valve; provides real-time display of exhaust pressure, automatic overpressure relief, an unloading valve that reduces the starting current under load, and dual safety assurance for both the motor and the air reservoir.
5. Four-wheel mobile chassis ensures hassle-free and effortless on-site setup: The unit weighs 158 kg with dimensions of 138 × 55 × 94 cm; its compact design features rubber casters, allowing for flexible relocation within the workshop without requiring permanent installation.
|
Model |
HS4808 |
Pressure(Mpa) |
0.8 |
|
Air Delivery(m³/min) |
0.48 |
Motor Power(kW) |
4 |
|
Tank(L) |
120 |
Diameterl(mm) |
90*2 |
|
Dimension(mm) |
1000*470*750 |
Weight(kg) |
158 |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
Leave A Message
One Stage Belt Air-cooled Protable Air Compressor
The Huada HS1708 is a 1.5 kW single-stage belt-drive air-cooled piston air compressor featuring a heavy-duty cast iron cylinder design with a 62 L tank, 0.8 MPa working pressure, and 0.17 m³/min air delivery. Its compact, portable structure makes it ideal for light auto repair, tire inflation, woodworking nailers, light-duty spray painting, and everyday pneumatic tool applications.
3HP Belt Driven Piston Air Compressor For Painting
The Huada HS2508 is a 2.2 kW (3 HP) single-stage belt-drive air-cooled piston air compressor featuring a heavy-duty cast iron cylinder design with a large-capacity tank, 0.8 MPa working pressure, and 0.25 m³/min air delivery. With ample power and smooth low-vibration operation, it is purpose-built for automotive painting, wall spraying, decoration projects, and continuous operation of medium-to-heavy duty pneumatic tools.
3kw Single-stage Belt Drive Air-cooled Piston Air Compressor
The Huada HS3608 is a 3kW single-stage belt-driven air-cooled piston air compressor featuring a heavy-duty cast iron cylinder for rapid heat dissipation and exceptional durability—ideal for outdoor and mobile applications. With 0.8MPa working pressure and a 105L capacity tank, it effortlessly powers impact wrenches, spray guns, nailers, and more, making it the perfect power source for DIY projects, small workshops, and job sites.
Heavy Duty Belt Driven Type Air Compressor With 170L Tank
The Huada HS9008 is a 7.5 kW (10 HP) single-stage belt-drive air-cooled piston air compressor featuring a triple-cylinder parallel compression design with an extra-large 170 L tank, 0.8 MPa working pressure, and 0.9 m³/min rated air delivery. With ample power, abundant storage, and strong continuous air supply capability, it is purpose-built for factory production lines, large-scale auto repair shops, automated painting systems, and multi-station parallel air supply in heavy-duty industrial applications.
HS1208 Belt-driven Air-cooled Mobile Piston Air Compressor
The HS1208 is a single-stage compression belt-driven air compressor with air-cooling system; it features a 1.1 kW power rating, a 40 L air storage tank, and an exhaust capacity of 0.12 m³/min. With its compact design and high mobility, this unit is an ideal air source for small auto repair shops, painting facilities, woodworking workshops, and home-based small-scale operations.
HS15008 Heavy-duty three-cylinder belt-driven air compressor with air-cooling and mobile design
The HS15008 is a heavy-duty variant of the Huada single-stage air compressor with a water-cooled design; featuring a high power output of 11 kW, an oversized air storage tank of 265 L, and an exhaust capacity of 1.5 m³/min, it is specifically designed to provide a stable high-pressure air supply for factory production lines, large-scale automotive repair facilities, and engineering applications.
YILUMA SV-100 Permanent Magnet Variable Frequency Screw Air Compressor – 75 kW High-Efficiency Energy-Saving Model
The SV-100 is a 75 kW permanent magnet variable-frequency screw air compressor from the YILUMA series, specifically designed for medium-capacity production lines. Combining a stable air output of 12.7 m³/min at 0.8 MPa with flexible variable-frequency control, this unit provides a first-class energy-efficient air supply for continuous operation scenarios such as automotive parts manufacturing, electronic assembly, textiles, and printing.
LGPM-30 permanent magnet variable frequency screw air compressor
Air compressors are the "power tigers" in industrial electricity consumption, with an average power consumption of 20%. How to use the same amount of electricity to produce more air and help users save energy? We have made a series of efforts and research, and have made important breakthroughs. The permanent magnet variable frequency screw compressor developed by the company saves about 40% of electricity for users while ensuring the original working efficiency.
