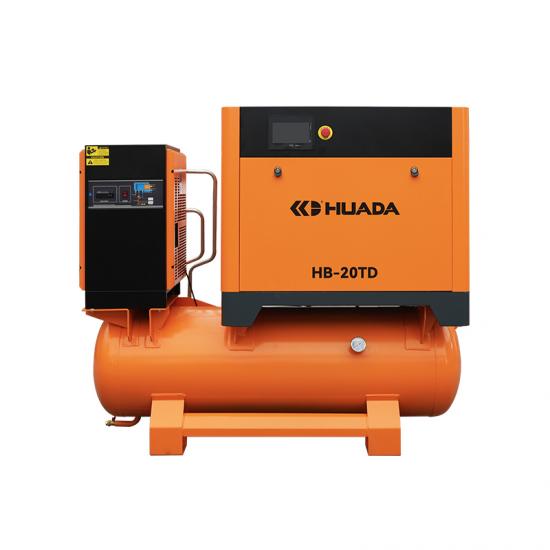

HB-20TD Medium-voltage Permanent Magnet Variable Frequency Drive Unit (15 kW, dedicated for laser cutting applications)

HB-20TD Medium-voltage Permanent Magnet Variable Frequency Drive Unit (15 kW, dedicated for laser cutting applications)

The HB-20TD is the flagship model in Huada's medium-pressure integrated system series, featuring a 15 kW permanent magnet frequency converter with a discharge capacity of 1.5 m³/min and stable pressure of 1.6 MPa, specifically designed for 1500–3000 W fiber laser cutting machines. Its integrated solution simplifies traditional multi-unit series configurations into a single unit, offering compact size, short piping requirements, and low pressure loss.

1. The 15 kW permanent magnet variable-frequency unit delivers a high air volume of 1.5 m³/min and stable pressure of 1.6 MPa, precisely meeting the continuous gas supply requirements of 2000–3000 W fiber laser cutting machines.

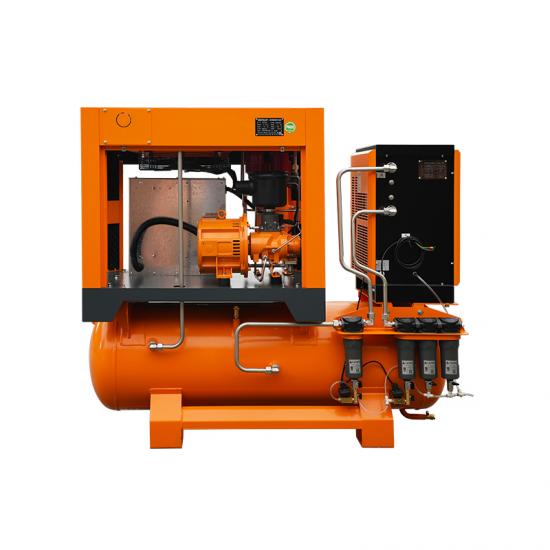

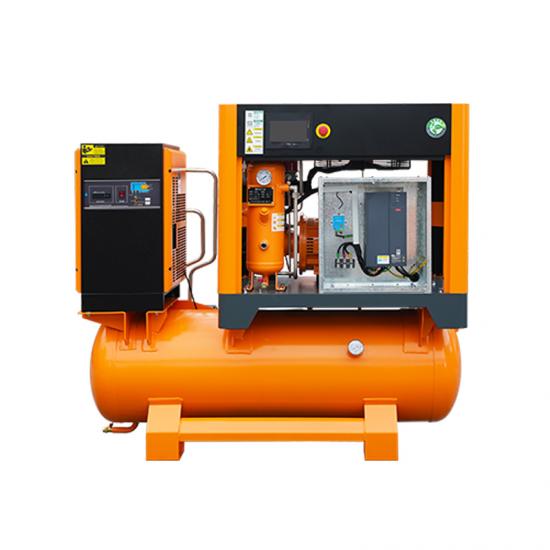

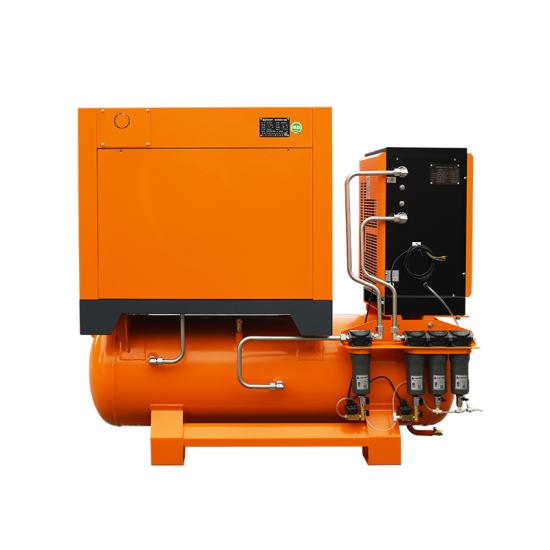

2. The integrated solution combines the screw compressor, gas storage tank, refrigerated dryer, and filter into a single unit, reducing the footprint by over 60% compared to traditional split systems.

3. The built-in freeze-dryer is paired with a precision filter, ensuring compressed air contains no more than 0.01 ppm oil and meets all cleanliness requirements for laser cutting processes.

4. The intelligent control system continuously monitors operational parameters such as pressure, temperature, and current, automatically optimizing loading/unloading strategies for more energy-efficient operation and hassle-free management.

5. Airlink IoT provides dual safeguards for fault detection and remote power control: proactive SMS/APP alerts for anomalies, and instant one-click shutdown in emergencies to ensure laser cutting equipment safety.

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
