/HD-75S Single-stage Permanent Magnet Variable Frequency Screw Air Compressor (75 kW / 14 m³/min)

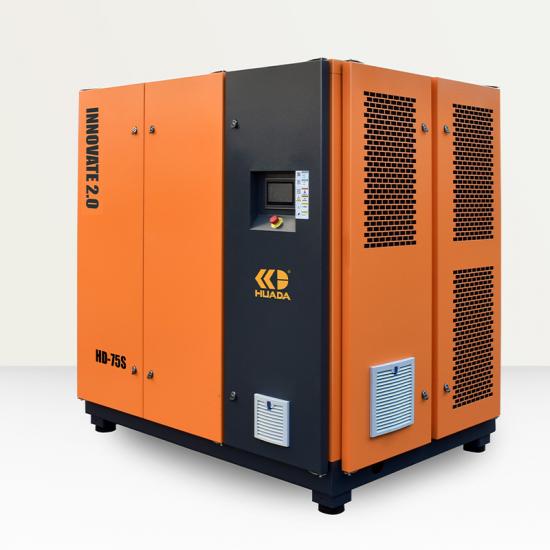

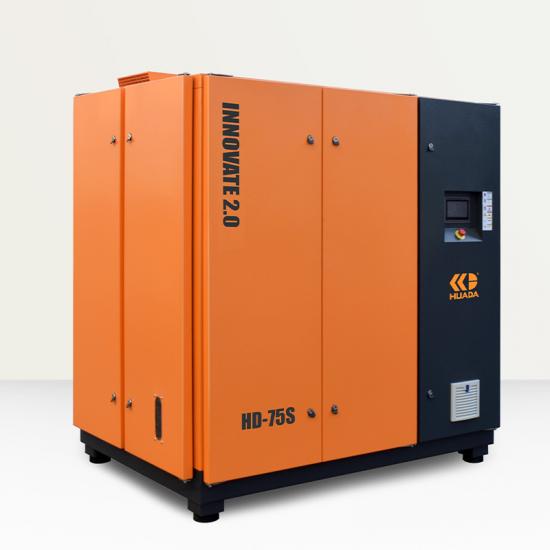

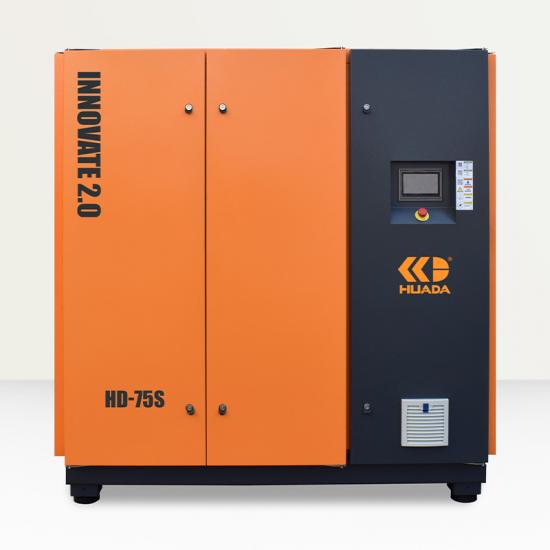

HD-75S Single-stage Permanent Magnet Variable Frequency Screw Air Compressor (75 kW / 14 m³/min)

The HD-75S is the flagship single-stage permanent-magnet variable-frequency screw compressor from the Huada INNOVATE 2.0 series, delivering a power output of 75 kW, a flow rate of 14 m³/min, and a pressure rating of 0.8 MPa. Equipped with an IE5 permanent-magnet motor, a German-engineered large-rotor main unit, and comprehensive IoT-based management capabilities, it provides efficient power supply for large-scale gas-utilization applications such as heavy-duty continuous production, wastewater treatment, and ship desulfurization.




  • Item NO.:

    HD-75S
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
New Products
  • Product Details

HD-75S Single-stage Permanent Magnet Variable Frequency Screw Air Compressor (75 kW / 14 m³/min)

The HD-75S is the flagship single-stage permanent-magnet variable-frequency screw compressor from the Huada INNOVATE 2.0 series, delivering a power output of 75 kW, a flow rate of 14 m³/min, and a pressure rating of 0.8 MPa. Equipped with an IE5 permanent-magnet motor, a German-engineered large-rotor main unit, and comprehensive IoT-based management capabilities, it provides efficient power supply for large-scale gas-utilization applications such as heavy-duty continuous production, wastewater treatment, and ship desulfurization.




1. 75 kW flagship power output and 14 m³/min high flow rate: The combination of a high-capacity main unit and robust motor power reserve ensures continuous, high gas demand in large-scale factories, municipal projects, and heavy-duty operating conditions, enabling seamless handling of peak gas consumption demands.

2. German-engineered large rotor main unit – low rotational speed, extended service life: Features a German-designed large-diameter rotor that operates at lower speeds, ensures smoother meshing, minimizes mechanical wear, and significantly extends continuous operating life.

3. IE5 Permanent Magnet Variable Frequency Drive + Intelligent Constant Pressure Control – High Overall Energy Efficiency: The permanent magnet synchronous motor achieves an efficiency of 97%; when combined with a full variable frequency drive and constant pressure control system, it provides on-demand gas supply to eliminate idle energy consumption, resulting in significant long-term cost savings on electricity bills.

4. High-efficiency filtration and oil-gas separation – with an extended maintenance interval of 4,000 h: long-life filter elements, 99.99% filtration efficiency, 96% oil-gas separation rate, and oil content <2 ppm – reducing both oil change frequency and consumable costs.

5. AirLink IoT Full Lifecycle Management (Optional): Integrate with the AirLink IoT platform to support remote monitoring, customer and inventory management, fault early warning, remote power-on/off operations, and employee permission management – enabling digital operation and maintenance throughout the entire device lifecycle.




Model
HD-75S Discharge Pressure(Mpa)
0.8
Air Delivery(m³/min)
14 Power(kW)
75
Lubricant(L)
40 Driving Way
Direct drive
Cooling
Air Cooling
Discharge Temperature(℃)
Ambient temperature ±15℃
Electricity(V/Hz)
380V/50Hz
Weight(kg)
1650
Dimension(mm)
2050*1550*2150 Air Outlet Pipe Diameter(inch/mm)
G2
