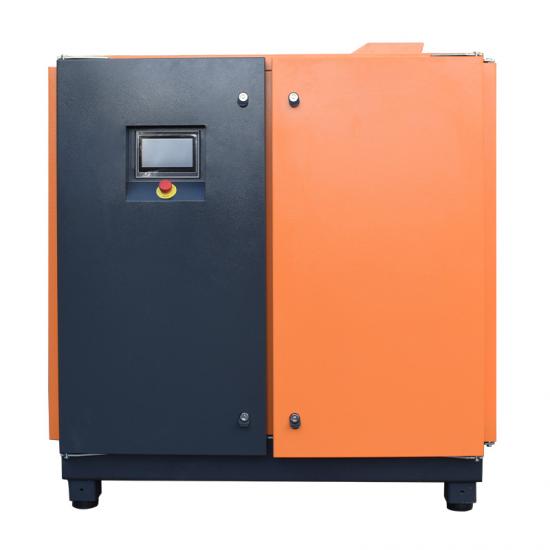

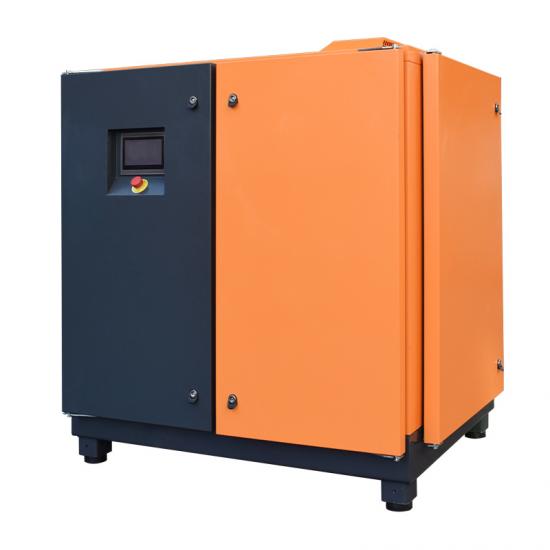

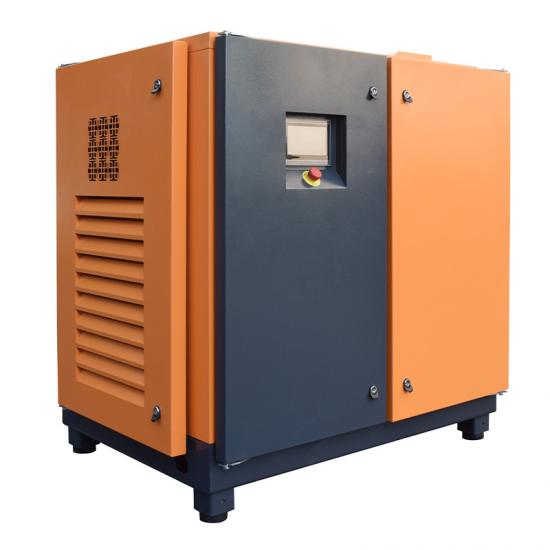

HD-22S Single-stage Permanent Magnet Variable Frequency Screw Air Compressor (22 kW / 3.7 m³/min)

HD-22S Single-stage Permanent Magnet Variable Frequency Screw Air Compressor (22 kW / 3.7 m³/min)

The HD-22S is an entry-level single-stage permanent magnet variable-frequency screw compressor from the INNOVATE 2.0 series, delivering a power output of 22 kW and a flow rate of 3.7 m³/min, with a stable air supply at 0.8 MPa. Equipped with an IE5 ultra-efficient permanent magnet motor and a German-engineered main unit, it operates at a noise level as low as 72 ± 3 dB, making it ideal for small-to-medium-scale applications such as manufacturing, food packaging, and textile industries.

1. The IE5 ultra-high-efficiency permanent magnet motor – more energy-efficient and hassle-free: The self-developed IE5 permanent magnet motor achieves an efficiency of up to 97%, saving approximately 5% compared to conventional asynchronous motors; even at a low power rating of 22 kW, it delivers low energy consumption and rapid response.

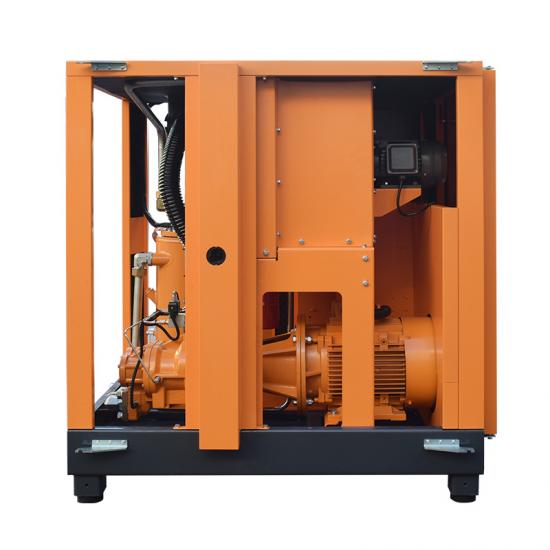

2. German-engineered single-stage main unit with large rotor at low speed: This design features a German-developed large-rotor main unit that operates at lower speeds, resulting in reduced wear, improved volumetric efficiency, and extended service life for both the main unit and its bearings.

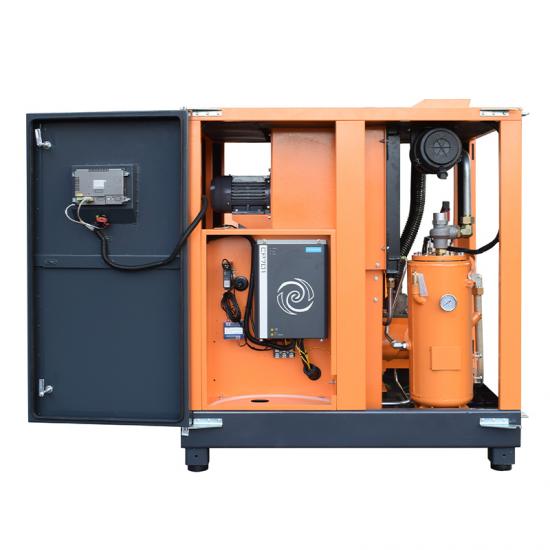

3. Microcomputer touch control – all parameters at a glance: a color touchscreen human-machine interface that displays pressure, temperature, and operating time in real time; intuitive operation and rapid fault code identification.

4. High-efficiency oil-gas separation (oil content ≤ 2 ppm): Multi-stage oil-gas separation combined with a filter element featuring 99.99% filtration efficiency ensures that the outlet air contains less than 2 ppm of oil, meeting the general industrial clean-air supply requirements.

5. AirLinkIoT Remote Monitoring (Optional): Optional integration with the AirLinkIoT platform enables remote monitoring of device status and receipt of fault alerts, reduces the frequency of on-site inspections, and enhances equipment management efficiency.

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
