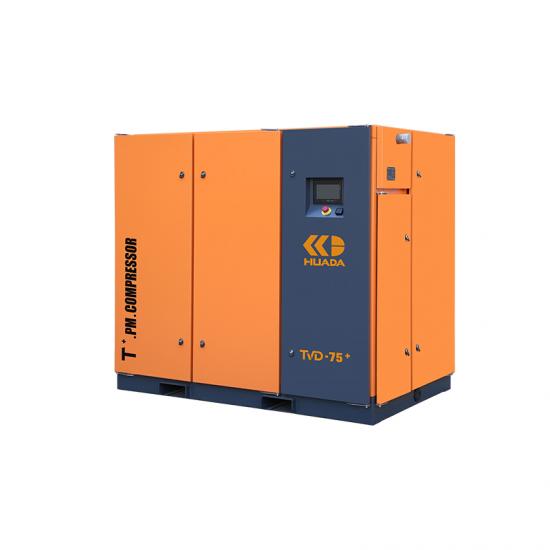

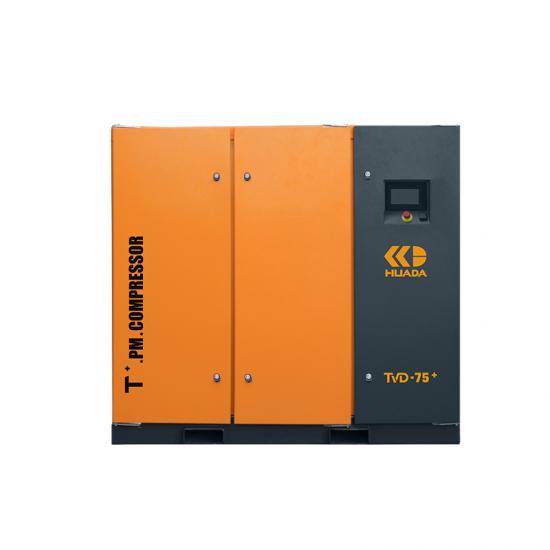

HUADA TVD-75+ 55 kW Two-Stage Permanent Magnet VSD Screw Air Compressor

TVD-75+ at a glance

The TVD-75+ provides more air than the TVD-60+ at the same reference pressure and pressure-range version. It shares the TVD-60+ cabinet dimensions while offering a higher capacity level. Review the selected version, electrical demand, ventilation and downstream treatment as one air-system specification before ordering.

• Selection focus: A higher-demand production network whose measured requirement matches the chosen version.
• Maintenance focus: An internal oil separator and a listed lubricant quantity of 54 L.
• Planning priority: Coordinate the 55 kW electrical installation, G2 connection and equipment-room cooling airflow.

01   Product advantages

1. 12.1 m³/min for higher-demand air supply
At 0.7 MPa, the 0.6-0.8 MPa version is listed at 12.1 m³/min, providing a defined capacity point for higher-demand production networks.

2. A higher-pressure-range version with its own output rating
The 0.6-1.0 MPa version is listed at 9.6 m³/min at 0.7 MPa. The separate rating helps buyers match capacity to the intended pressure-range configuration.

3. 55 kW permanent magnet variable-speed drive
The drive adjusts compressor speed as production demand changes, supporting an industrial network with variable loading.

4. Two-stage drive without interstage gears
The horizontal integrated transmission combines both stages, with the series design avoiding interstage gears and their associated gear noise and transmission loss.

5. Internal oil-separator arrangement
The 55 kW model uses an internal oil separator. Identifying the correct arrangement supports suitable service-access planning and separator-element replacement procedures.

6. Greater capacity within the same listed cabinet dimensions
The TVD-75+ and TVD-60+ both measure 2000 × 1546 × 1785 mm, while the TVD-75+ has higher listed output for each corresponding pressure-range version.

7. Air-cooled design with operating supervision
Axial-fan cooling, a dedicated control display and motor protection functions support equipment-room operation. Cooling-air paths and service access should be included in the installation design.

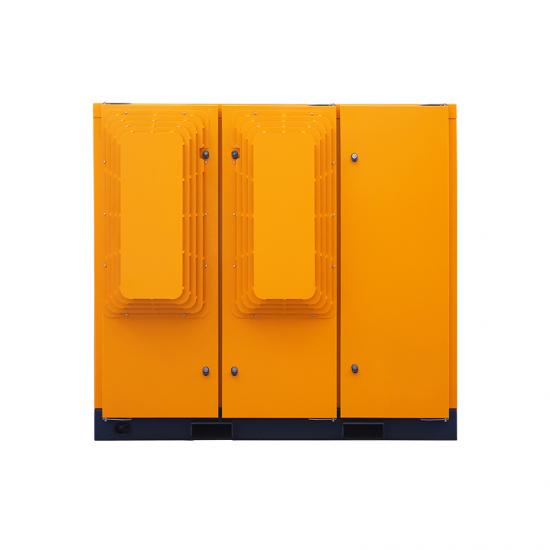

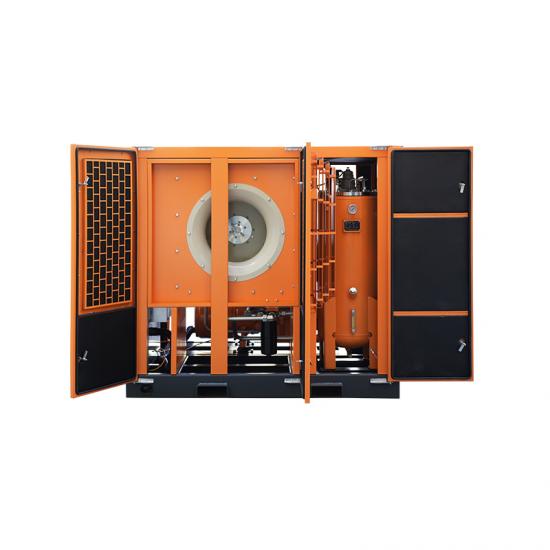

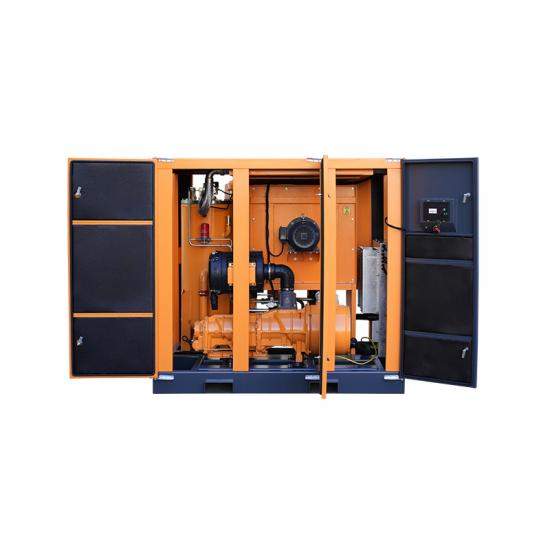

TVD-75+ with cabinet doors open.

02   Technical specifications

Parameter	TVD-75+
Model	TVD-75+
Motor power	55 kW
Listed discharge pressure	0.7 MPa
0.6-0.8 MPa working range	Air delivery at 0.7 MPa: 12.1 m³/min Listed motor speed: 3000 rpm
0.6-1.0 MPa working range	Air delivery at 0.7 MPa: 9.6 m³/min Listed motor speed: 2550 rpm
Power supply	380-400 V / 50 Hz
Starting method	Variable-frequency starting
Cooling method	Air cooling with axial fan
Drive layout	Horizontal two-stage integrated transmission
Lubricant quantity	54 L
Listed noise level	78 ± 2 dB(A)
Dimensions (L × W × H)	2000 × 1546 × 1785 mm
Weight	1560 kg
Air outlet connection	G2
Oil separator	Internal oil separator

Air delivery is listed at 0.7 MPa. The two air-delivery and speed figures belong to different pressure-range versions; they are not a VSD minimum-to-maximum range. Confirm performance at the required operating pressure and verify the electrical specification for the ordered unit. Noise measurement conditions are not specified here; request the applicable test conditions when comparing equipment.

03   Check the fit for your site

Industrial demand: Provide typical and peak air demand, the number of operating shifts and any planned production expansion.

Electrical and ventilation planning: Review the 55 kW motor requirement, available power supply and the cooling-air path through the equipment room.

System integration: Confirm receiver, dryer and filter selection, G2 pipework and service access for the internal oil separator.

Air quality: Define the required air quality and select the receiver, dryer and filters accordingly. This lubricated compressor is not specified as oil-free.
