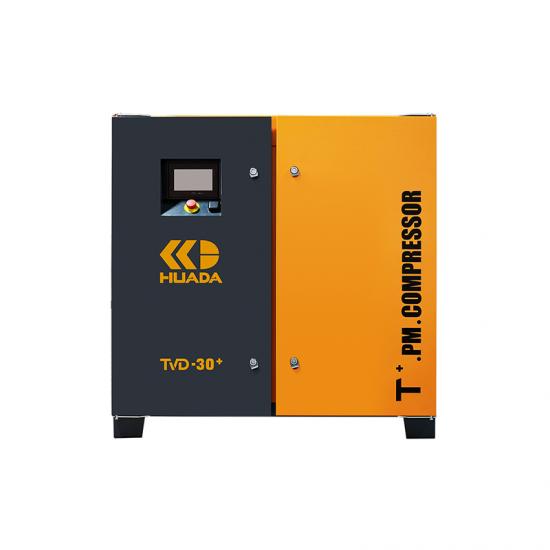

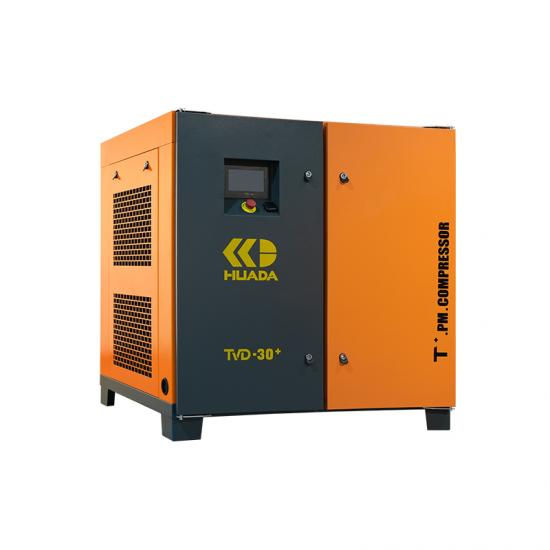

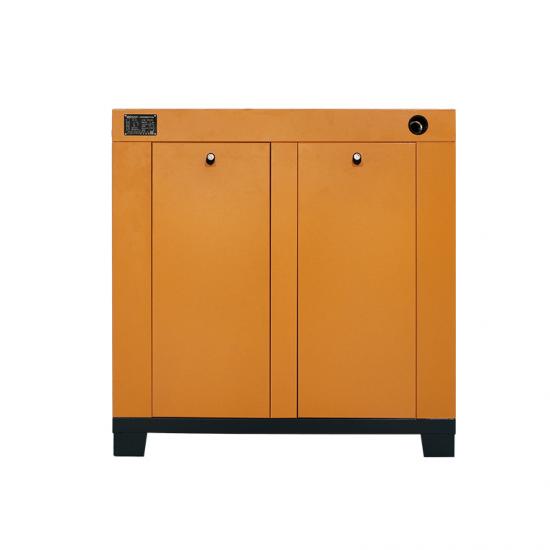

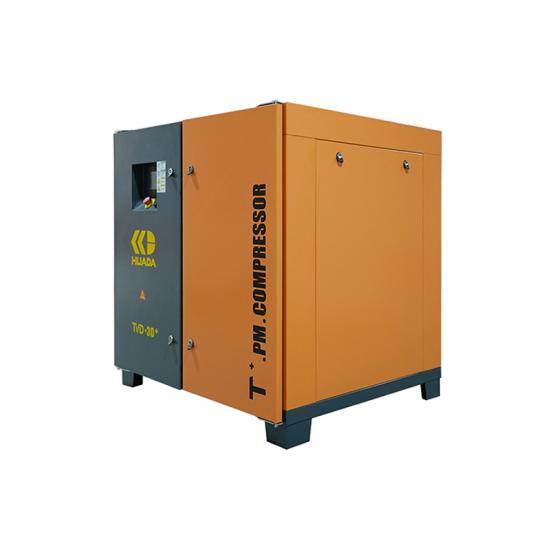

The latest 22 kW TVD+ series permanent magnet two-stage variable-frequency screw air compressor with innovative design

The latest 22 kW TVD+ series permanent magnet two-stage variable-frequency screw air compressor with innovative design

The TVD+ series 22 kW permanent magnet two-stage variable-frequency screw compressor employs dual energy-saving technologies—two-stage compression and permanent magnet frequency conversion—with an overall efficiency 15–20% higher than that of Class 1 units, making it the ideal solution for energy-efficient upgrades and air source enhancement in medium-sized manufacturing facilities.

1.  The 1:10 tapered sleeve features a direct-drive design with over 95% contact area, ensuring high transmission accuracy and smooth operation without looseness.

2. The IE5 oil-cooled permanent magnet motor, equipped with intelligent frequency conversion control, achieves an efficiency of up to 96%, delivering significant energy savings.

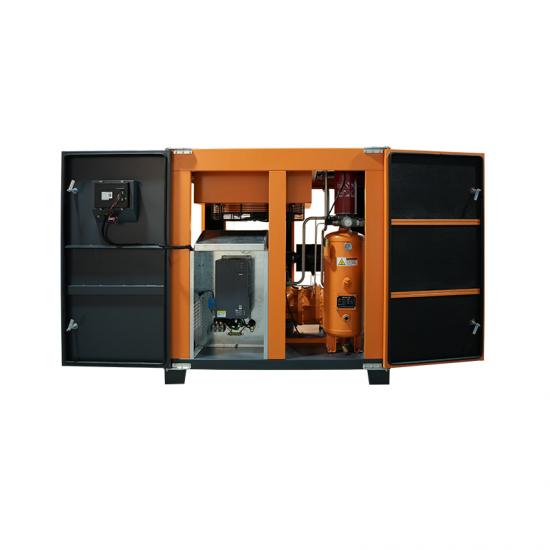

3. The external oil tank features a high-capacity design with low pressure differential, long service life, and easy maintenance.

4. It operates with ultra-low noise levels as low as 70–72 dB and features IP65 protection rating for dust-prone and humid environments.

5. Comprehensive motor protection (phase loss/overload/unbalance/over/under-voltage) + AirLink IoT-based intelligent fault alert notifications for enhanced operational reliability.

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
