The latest 5.5 kW TVD+ series permanent magnet two-stage variable-frequency screw air compressor

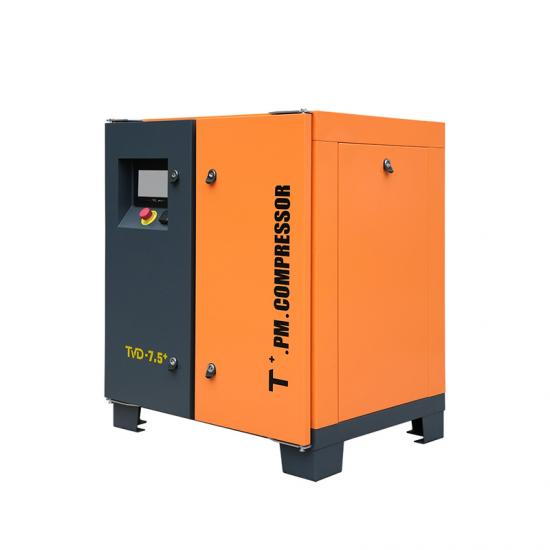

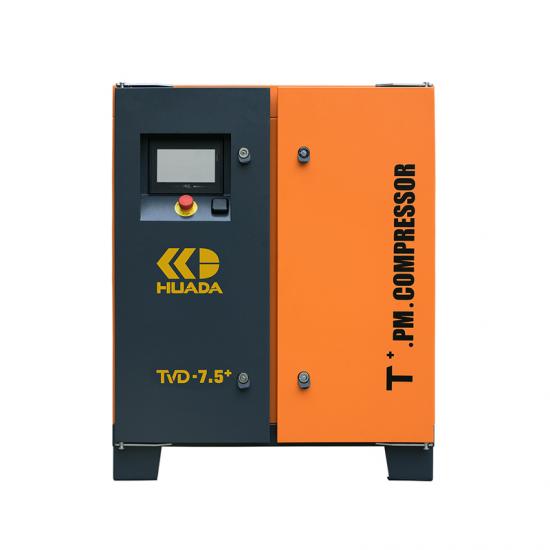

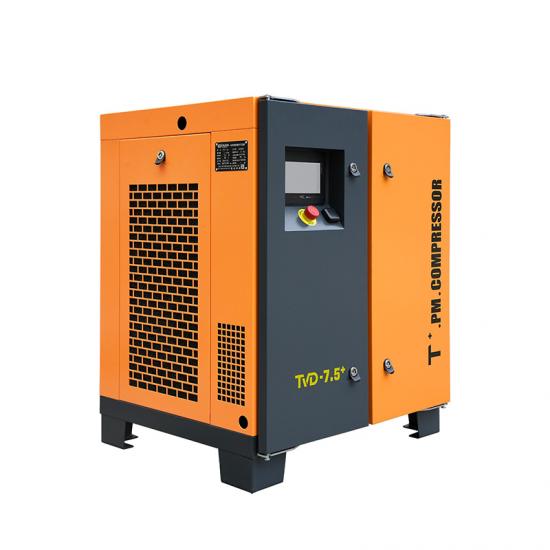

The latest 7.5 kW TVD+ series permanent magnet two-stage variable-frequency screw air compressor

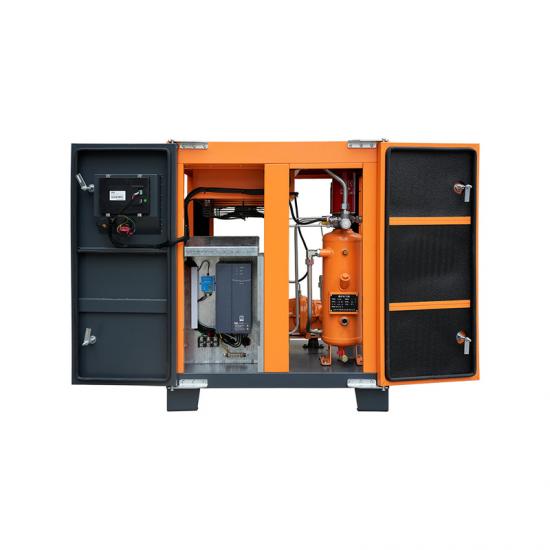

The TVD+ series 7.5 kW permanent magnet two-stage variable-frequency screw compressor combines a two-stage compression unit with an IE5-class permanent magnet variable-frequency motor, delivering overall efficiency 15–20% higher than China's National Grade 1 energy standards—a cost-effective energy-saving solution specifically designed for small workshops.

1. The two-stage compression unit employs a 1:10 taper direct-drive mechanism with over 95% contact area, ensuring low operational vibration and extended service life.

2. Equipped with an IE5 oil-cooled integrated permanent magnet motor, it achieves a power efficiency of up to 96%, saving 20–30% electricity compared to traditional asynchronous motors.

3. The intelligent frequency converter dynamically adjusts gas consumption in real time, minimizing idle waste and reducing operational costs.

4. The ultra-quiet design produces only 70–72 dB of noise, 8–10 dB lower than comparable products, ensuring hassle-free operation in close workshop environments.

5. Equipped with the AirLink IoT smart IoT platform, it supports remote device monitoring, fault alert notifications, and collaborative management by multiple users, enabling real-time tracking of device operation status.

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
