The HS1208 is a single-stage compression belt-driven air compressor with air-cooling system; it features a 1.1 kW power rating, a 40 L air storage tank, and an exhaust capacity of 0.12 m³/min. With its compact design and high mobility, this unit is an ideal air source for small auto repair shops, painting facilities, woodworking workshops, and home-based small-scale operations.
Item NO.:
HS1208Product Origin:
ChinaProduct weight:
65kgShipping Port:
XiamenLead Time:
7-15 days

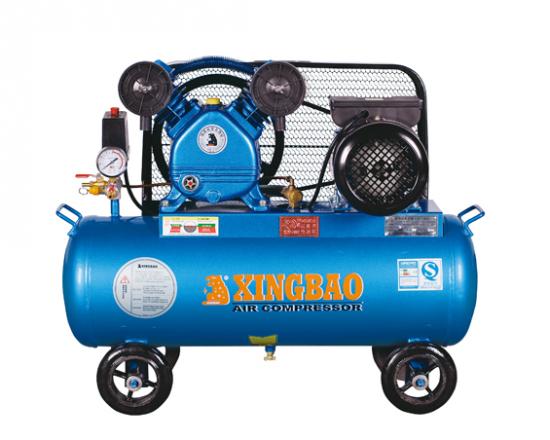

HS1208 Belt-driven Air-cooled Mobile Piston Air Compressor
The HS1208 is a single-stage compression belt-driven air compressor with air-cooling system; it features a 1.1 kW power rating, a 40 L air storage tank, and an exhaust capacity of 0.12 m³/min. With its compact design and high mobility, this unit is an ideal air source for small auto repair shops, painting facilities, woodworking workshops, and home-based small-scale operations.
1. 1.1 kW compact power output and a 40L air storage tank with instant-on/off functionality: featuring a single-cylinder 51mm × 2 cast iron pump head paired with a 40L air storage tank, this unit delivers an exhaust capacity of 0.12 m³/min, effortlessly meeting daily air requirements for nail guns, spray painting, tire inflation, and other applications.
2. All-copper motor + belt drive: ensures smooth operation and low noise; the all-copper wire motor combined with a flexible belt drive results in low operating temperature rise and minimal vibration, offering superior continuous operation stability compared to direct-drive configurations.
3. Dual-wheel mobility design enables flexible maneuvering in confined spaces: the entire unit weighs only 65 kg with dimensions of 94 × 46 × 70 cm; featuring dual wheels at the bottom and a handle design, it can be pushed by a single person, making it ideal for mobile maintenance and outdoor operations.
4. Heavy-duty cast iron oil-lubricated pump head featuring high wear resistance and extended service life: the pump body and cylinder head are constructed from cast iron, which reduces wear through oil lubrication; the key wear-prone components have an extended service life, thereby reducing long-term operating costs.
5. Pressure switch automatic start/stop + unloading valve protection: automatically stops the machine upon reaching the set pressure; the unloading valve starts at zero pressure to reduce motor load; this dual protection system for both the motor and pump head ensures enhanced safety.
|
Model |
HS1208 |
Pressure(Mpa) |
0.8 |
|
Air Delivery(m³/min) |
0.12 |
Motor Power(kW) |
1.1 |
|
Tank(L) |
40 |
Diameterl(mm) |
51*2 |
|
Dimension(mm) |
94*46*70 |
Weight(kg) |
65 |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
