The HS15008 is a heavy-duty variant of the Huada single-stage air compressor with a water-cooled design; featuring a high power output of 11 kW, an oversized air storage tank of 265 L, and an exhaust capacity of 1.5 m³/min, it is specifically designed to provide a stable high-pressure air supply for factory production lines, large-scale automotive repair facilities, and engineering applications.
Item NO.:
HS15008Product Origin:
ChinaProduct weight:
381kgShipping Port:
XiamenLead Time:
7-15 days

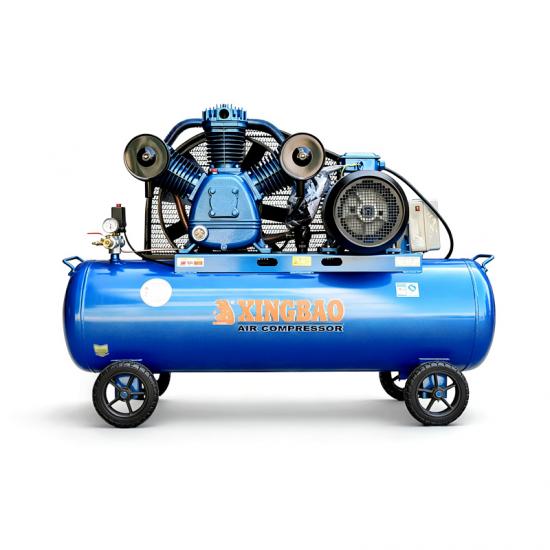

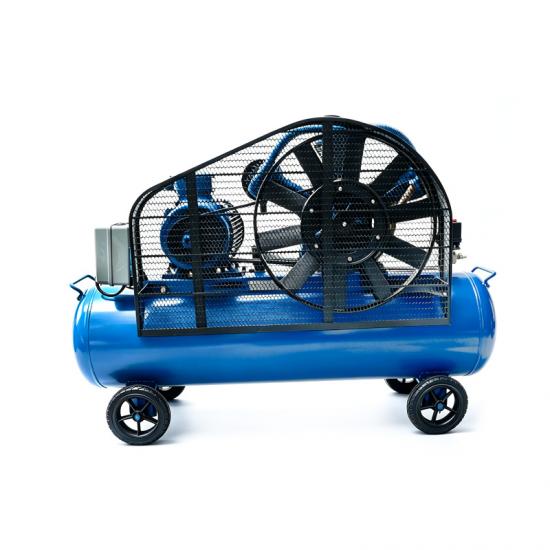

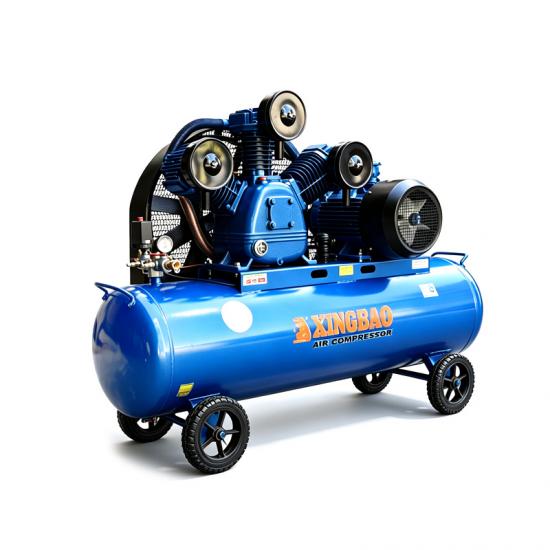

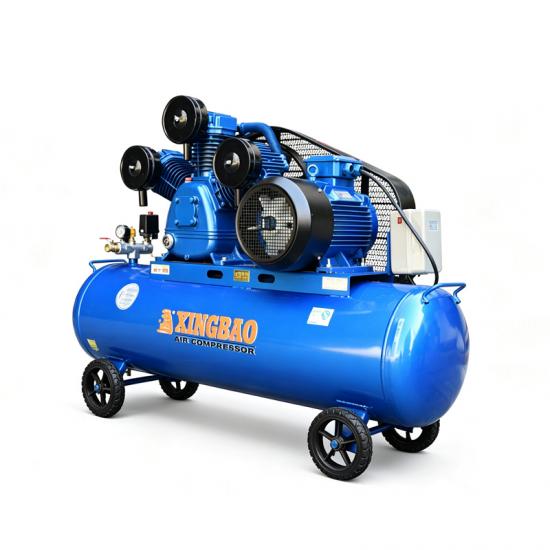

HS15008 Heavy-duty three-cylinder belt-driven air compressor with air-cooling and mobile design
The HS15008 is a heavy-duty variant of the Huada single-stage air compressor with a water-cooled design; featuring a high power output of 11 kW, an oversized air storage tank of 265 L, and an exhaust capacity of 1.5 m³/min, it is specifically designed to provide a stable high-pressure air supply for factory production lines, large-scale automotive repair facilities, and engineering applications.
1. 11 kW high power output + 100 mm three-cylinder pump head with a high discharge capacity of 1.5 m³/min: featuring an enlarged cylinder diameter and stroke design, this unit achieves a discharge capacity of 1.5 m³/min, enabling it to simultaneously drive multiple high-air-consumption tools and support continuous operation of the production line.
2. The 265L ultra-large air storage tank provides ample air pressure reserve: compared with the 160L model, the horizontal air storage tank's capacity increases by 66%; its large buffer capacity effectively mitigates peak air demand, reduces the frequency of air compressor starts and stops, and extends the overall service life.
3. Heavy-duty cast iron frame + reinforced bearing housing: impact-resistant and long service life – the pump head and crankcase are constructed from high-strength cast iron; double-row bearings support the crankshaft, providing strong impact resistance and making this unit suitable for prolonged full-load operating conditions.
4. Independent air cooling combined with enlarged heat dissipation fins ensures stable operation in high-temperature environments: the increased heat dissipation area of the cylinder head and inter-stage cooler, coupled with forced air cooling via a large-diameter flywheel, enables precise control of the exhaust temperature at 45°C, thereby ensuring the stability of the lubricating oil film.
5. Comprehensive safety protection system for reliable use in industrial environments: equipped with a safety valve, pressure switch, unloading valve, and overload protector; featuring automatic overpressure relief and automatic motor power disconnection upon overload, ensuring compliance with industrial safety standards.
|
Model |
HS15008 |
Pressure(Mpa) |
0.8 |
|
Air Delivery(m³/min) |
1.5 |
Motor Power(kW) |
11 |
|
Tank(L) |
265 |
Diameterl(mm) |
100*3 |
|
Dimension(mm) |
1890*760*1350 |
Weight(kg) |
381 |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
