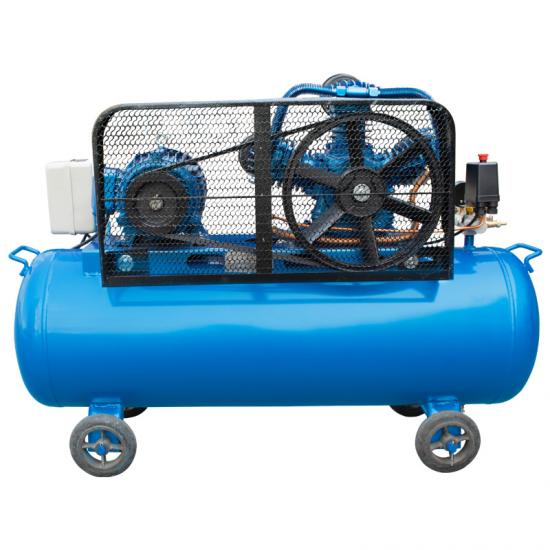

3kw Single-stage Belt Drive Air-cooled Piston Air Compressor

Single-stage belt drive air-cooled piston air compressor is designed for professionals and serious do-it-yourselfers, the versatile for the home, shop or jobsites.It can power impact guns, ratchets, grinders, drills, nailers, paint sprayers, sanders and more.

  • Item NO.:

    HS3608
  • Product Origin:

    China
  • Product weight:

    112
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
  • Product Details

3kw Single-stage Belt Drive Air-cooled Piston Air Compressor


Single-stage belt drive air-cooled piston air compressor is designed for professionals and serious do-it-yourselfers, the versatile for the home, shop or jobsites.It can power impact guns, ratchets, grinders, drills, nailers, paint sprayers, sanders and more.



1.The cylinder head uses aluminum material, which makes it easier to dissipate heat.

2.The assembly method of the belt guard can avoid vibration and noise, and is more secure and safe.

3.Equipped with pressure regulator,pressure gauge,quick connect air outlet,safety valve,on/off switch.

4.CE,CQC,ISO9001 certificated.



Model
HS3608 Pressure(Mpa)
0.7
Air Delivery(m³/min)
0.36 Motor Power(kW)
3
Tank(L)
103 Diameterl(mm)
65×2
Dimension(mm)
1210*490*960 Weight(kg)
112



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
