Permanent Magnet VSD Screw Compressor

/Blue Storm Series Permanent Magnet Frequency Conversion Screw Air Compressor

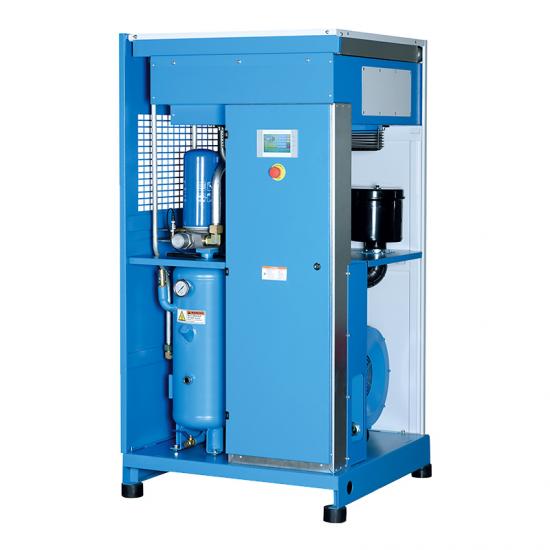

Blue Storm Series Permanent Magnet Frequency Conversion Screw Air Compressor

Blue storm series permanent magnet frequency conversion screw air compressor through the technology of automatic adjustment of the motor speed,air flow tracking precision.Combine new IPM motor,can save energy up to 50%. Life cycle cost can save an average of 37%.

  • Item NO.:

    Blue Storm Series
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
  • Product Details

Blue Storm Series Permanent Magnet Frequency Conversion Screw Air Compressor


Blue storm series permanent magnet frequency conversion screw air compressor through the technology of automatic adjustment of the motor speed,air flow tracking precision.Combine new IPM motor,can save energy up to 50%. Life cycle cost can save an average of 37%.Blue storm series permanent magnet frequency conversion screw air compressor adopt the field type permanent magnet motor design.



1.High Efficiency
Ultimate energy saving design.Air delivery according to actual demand.High efficiency PM motor to IE4 international efficiency level.50% energy saving over piston compressors.
2.High Reliability
The system more simple design,with 35 years of experience and technology of our HUADE,the perfect integration of the latest technology low  maintenance cost,less parts and longer working hours.
3.Low Noise
Airflow control and advanced design,high volume low speed cooling fan reduces noise by 15-20%.Super quiet operation as low as 60dBA.
4.Small Model
New appearance,innovation of industrial screw;Small area cover;50% energy saving.
5.Compact Structures
The coaxial of rotor and motor.Isolation of drive and hot-cold cooling system.



Model
M-10 M-15
M-20
M-30

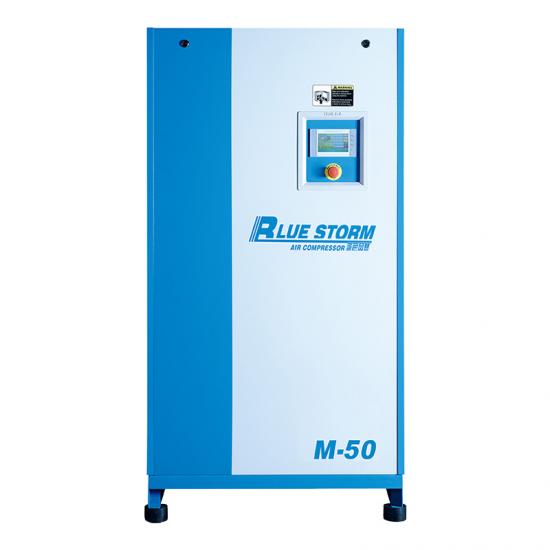

M-50
Air Delivery(m³/min)
1.4~1.1
1.8~1.4
2.4~2.0
3.7~3.1
6.1~5.2
Discharge Pressure(Mpa)
0.7~1.0
Power(kW)
7.5 11 15 22 37
Straing Method
Variable Frequency Starting
Driving Way
Direct Drive
Lubricant(L)
5 7 7 10 16
Cooling
Air Cooling
Discharge Temperature(℃)
<Environmental Temperature+15℃
Noise Level(dB(A))
60 62 62 63 65
Electricity(V/Hz)
380V/50Hz
Dimension(mm)
680*610*1255
742*682*1420
742*682*1420
800*780*1590
900*878*1740
Weight(kg)
180 245 245 340 500
Air Outlet Pipe Diameter(inch/mm)
G3/4''
G3/4''
G3/4''
G1''
G1-1/4''



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
