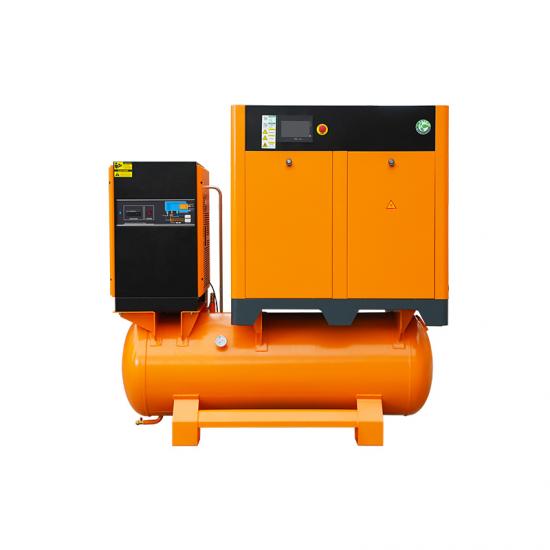

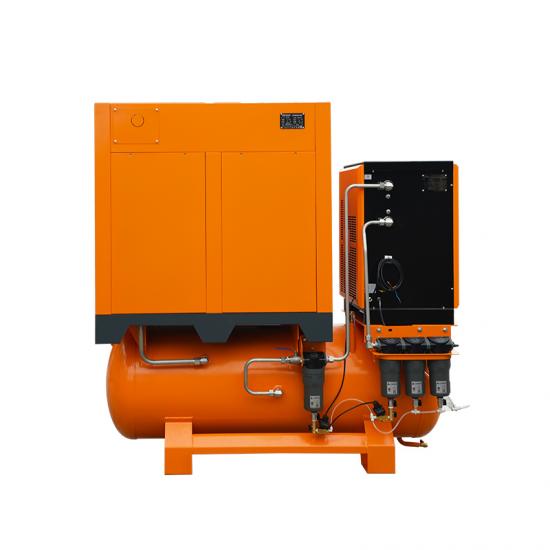

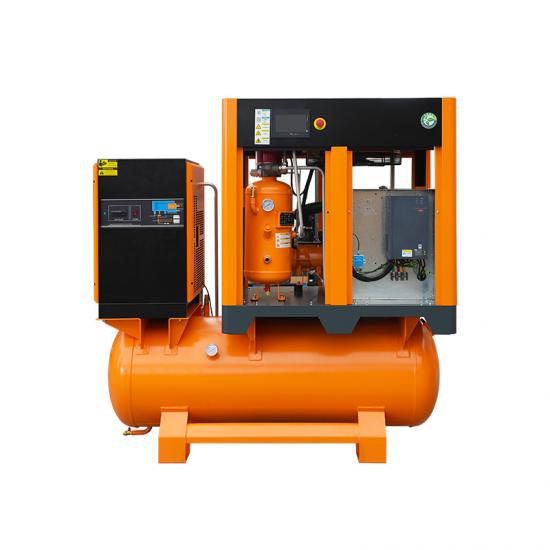

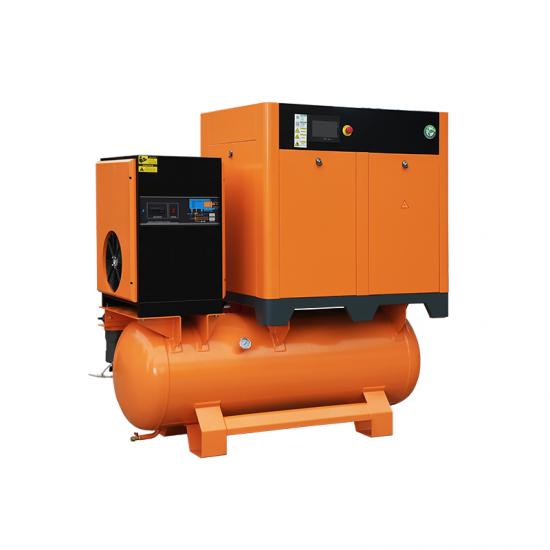

HB-30TD Medium-voltage Permanent Magnet Variable Frequency Drive Unit (Specialized for Laser Cutting, 22 kW)

HB-30TD Medium-voltage Permanent Magnet Variable Frequency Drive Unit (Specialized for Laser Cutting, 22 kW)

The HB-30TD is the high-power flagship model in Huada's medium-pressure integrated machine series, delivering a main unit output of 22 kW with a large air volume of 2.2 m³/min and stable pressure of 1.6 MPa. It is specifically designed for high-power fiber laser cutting machines exceeding 3000 W and heavy-duty cutting production lines. Its integrated "key engineering" solution eliminates the costs associated with coordinating multiple equipment purchases, ensuring immediate readiness for use and reliable performance.

1. The 22 kW high-power permanent magnet variable-frequency unit delivers an ultra-high exhaust volume of 2.2 m³/min and a stable pressure of 1.6 MPa, specifically designed for high-power fiber laser cutters exceeding 3000 W and heavy-duty cutting production lines.

2. The entire system is equipped with a high-capacity refrigerated dryer, ensuring stable pressure dew point and preventing condensation on laser lenses even during continuous full-load operation.

3. With a 950 kg heavy-duty frame and an integrated chassis measuring 1880×901×1911 mm, this unit delivers enhanced operational stability and superior vibration resistance, making it ideal for 24/7 continuous cutting operations and heavy-duty sheet metal processing.

4. The integrated "Key Project" solution eliminates the coordination and time costs associated with customers separately purchasing screw compressors, gas storage tanks, refrigerated dryers, and filters, thereby shortening the commissioning cycle of laser cutting lines.

5. The complete suite of five AirLink IoT functions: remote monitoring, customer and inventory management, fault alerts, remote power on/off, employee permission hierarchy – delivering comprehensive digital operations management.
