A Series Screw Compressor

/132kw Low Pressure Screw Air Compressor

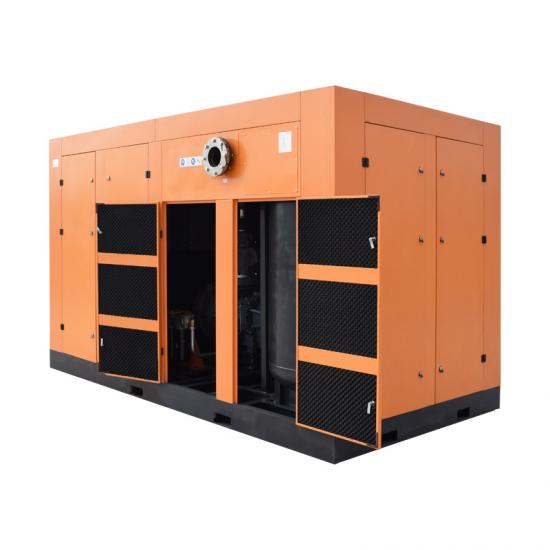

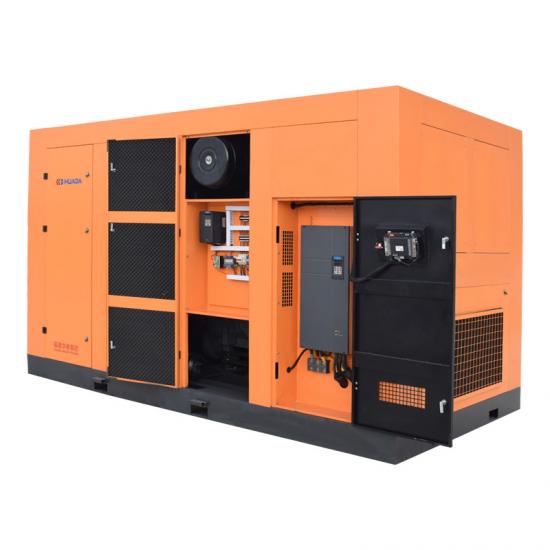

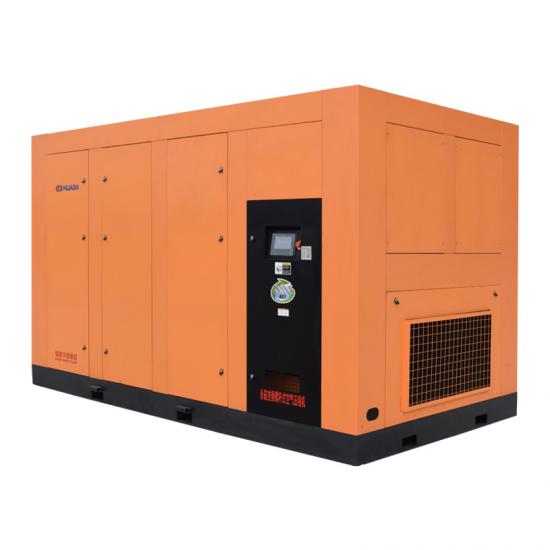

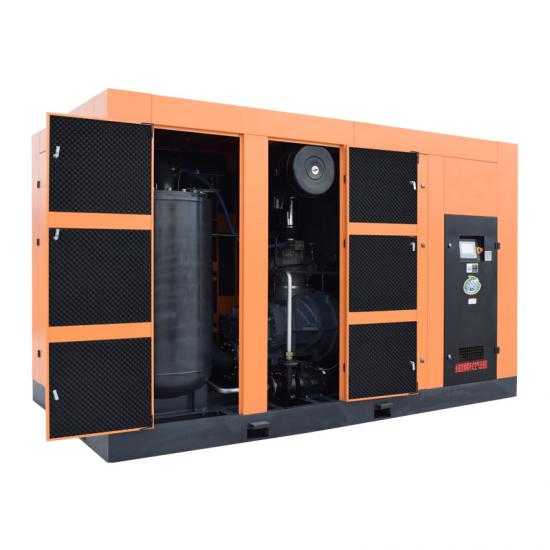

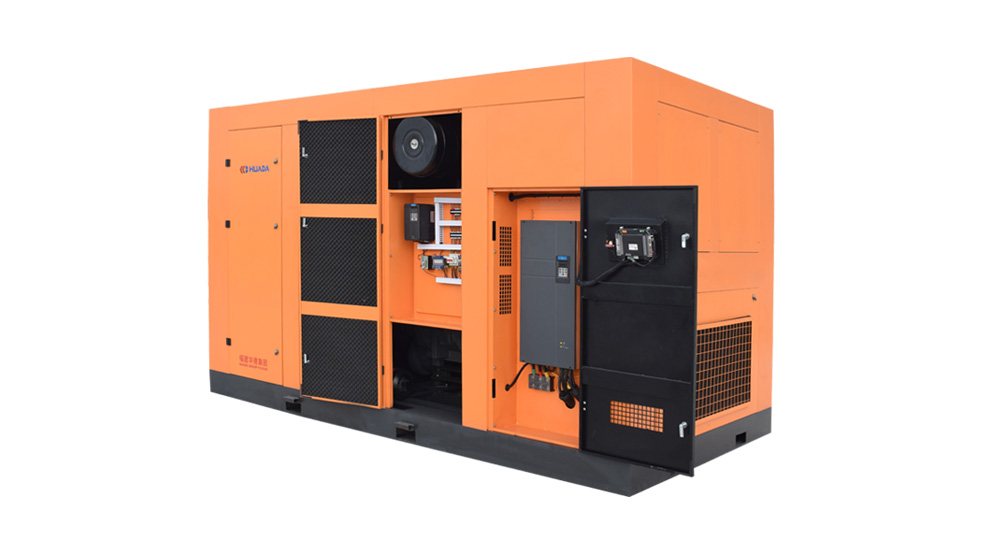

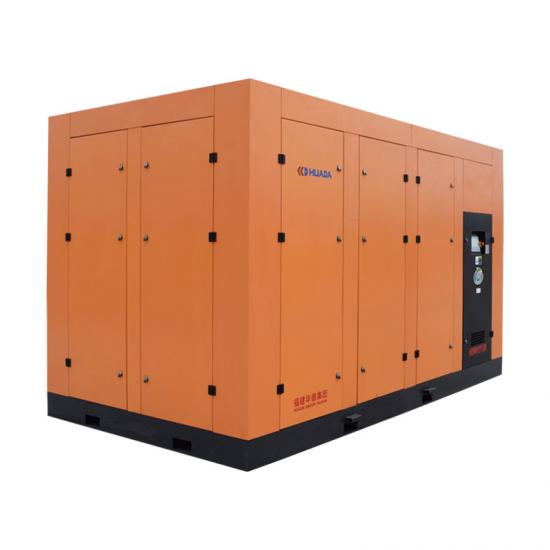

132kw Low Pressure Screw Air Compressor

Low pressure screw air compressor runs in low pressure,Parts with small force and heat low load.Compressor run more stable,reliable,longer life.

  • Item NO.:

    LGL-175-3
  • Product Origin:

    China
  • Product weight:

    4200kg
  • Shipping Port:

    Xiamen
  • Lead Time:

    15-30 days
Share To :
  • Product Details

132kw Low Pressure Screw Air Compressor


Low pressure screw air compressor runs in low pressure,Parts with small force and heat low load.Compressor run more stable,reliable,longer life.



1.High reliability original air end
The new generation of screw rotor with excellent. performance, reliable operation,  automatically adjust the internal compression ratio. In the exhaust pressure range of 0.2~0.5 Mpa , the optimal ratio of power (energy efficiency) is maintained. To ensure that the lowest operating cost for a long time no fault operation.
2.High efficiency motor
Optimization of motor shell design,All the designs are in line with international standards,Innovative rotor design,so the motor power loss is reduced by 40%, and the wide range of voltage adaptation make compressor is more energy saving,also air pressure is more constant.
3.Oil filter
Using Rotary filter,can filter out the impurities in the lubricant completely,have temperature control valve inside,Adapt to the regional  temperature,to  ensure the quality of lubricating oil and oil pressure,easy to  replace,without the worry of oil.
4.Intelligence touch screen operating system
Using computer platform controller,to adjust and monitor the operation parameters of the twelve statements quality of air compressor,When the preset value,the controller automatically sends out a warning or stop,while showing the cause of the failure,and writes the history fault records,so that the remote network control becomes a reality.
5.Energy saving highlights
Using high volumetric efficiency screw air end,avoid the process of compression and expansion energy loss,low pressure screw compressor will save the energy for more than 30%,energy-saving effect is remarkable,you save the energy that it will let you recover the investment in less than a year.



Model
LGL-175-3
Discharge Pressure(Mpa)
0.3
Air Delivery(m³/min)
45 Power(kW)
132
Exhaust Interface
DN160
Noise Level(dB(A))
78±3
Dimension(mm)
4000*2150*2400
Weight(kg)
4200



1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.



2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.



3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.


4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
