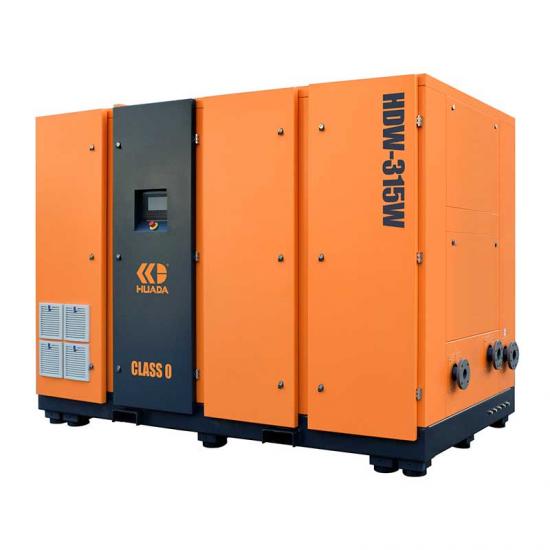

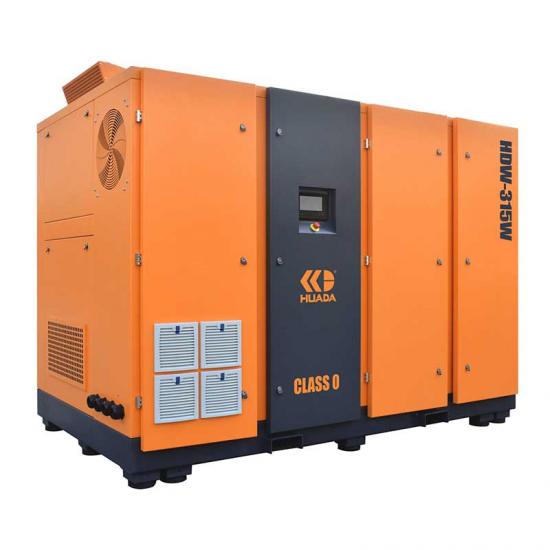

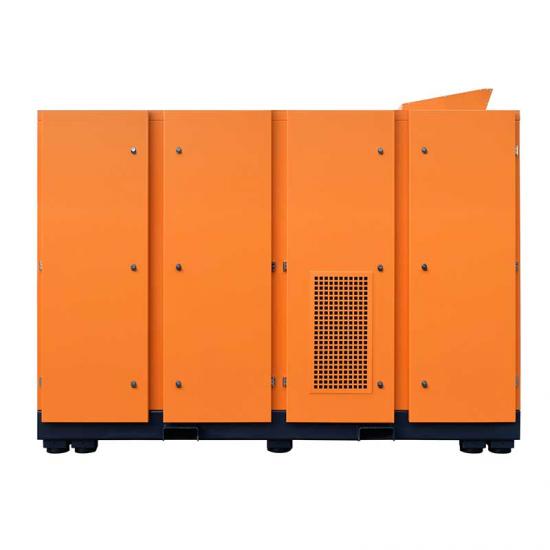

315kw Huada oil-free screw compressor

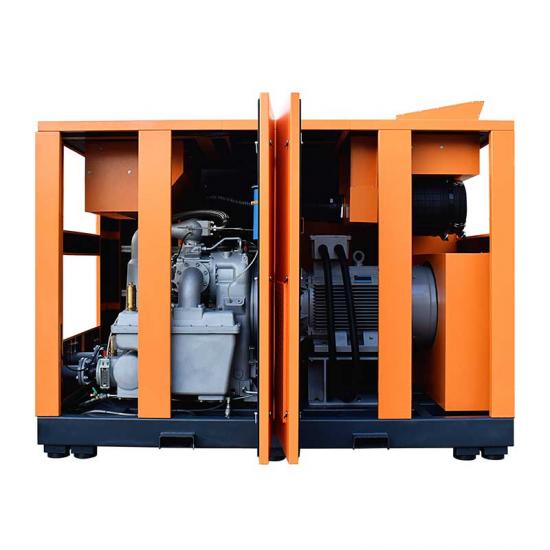

Huada HDW series dry oil-free screw compressor is a fixed dry two-stage compressor. lts structure, the compressor air end, the main motor, the oil, the air cooler and various control systems and pipelines are all installed on a rigid frame and placed in a special box cover equipped with sound-absorbing materials to become a box-type unit.
1.Double seal: The unique labyrinth oil seal technology and double protection measures ensure that the compressed air is pure and oil-free.
2.Efficiente operation: Thegear realizes the synchronous non-contact operation of the rotor, and always keeps the unit running efficiently.
3.Dry technology : More than 100,000 pairs of oil-free rotors have been produced, which have been successfully used in pharmaceutical, food and beverage, precision electronics and other industries with high requirements for compressed air quality.
4.High efficiency and energy saving: Variable frequency smooth start eliminate! the peak current at start-up, effectively reduces energy loss, and high-precision control power of frequency conversion stabilizes the pressure of the pipe network to avoid compressed air loss
5.Reliable performance: The surface of the rotor and housing is super-coated to prevent rust and pollute gases, ensuring the reliable operation of the main engine
6.100% oil-free: Stainless steel floating ring double-channel air seal, and nickel-plated reverse floating
double-channel oil seal, no wear, good sealing effect, effectively reduce the leak-age of compressed air and prevent lubri-cating oil from entering the compressed air cavity, to achieve 100% oil-free.
|
Model |
HDW-315W |
Discharge Pressure(Mpa) |
1.0 |
|
Air Delivery(m³/min) |
42 |
Power(kW) |
315 |
|
Lubricant(L) |
120 |
Driving Way |
Direct drive |
|
Cooling |
water cooling |
Discharge Temperature(℃) |
Ambient temperature±15℃ |
|
Electricity(V/Hz) |
380V/50Hz |
Weight(kg) |
5600 |
|
Dimension(mm) |
3900*2150*2475 |
Air Outlet Pipe Diameter(inch/mm) |
DN125 |
